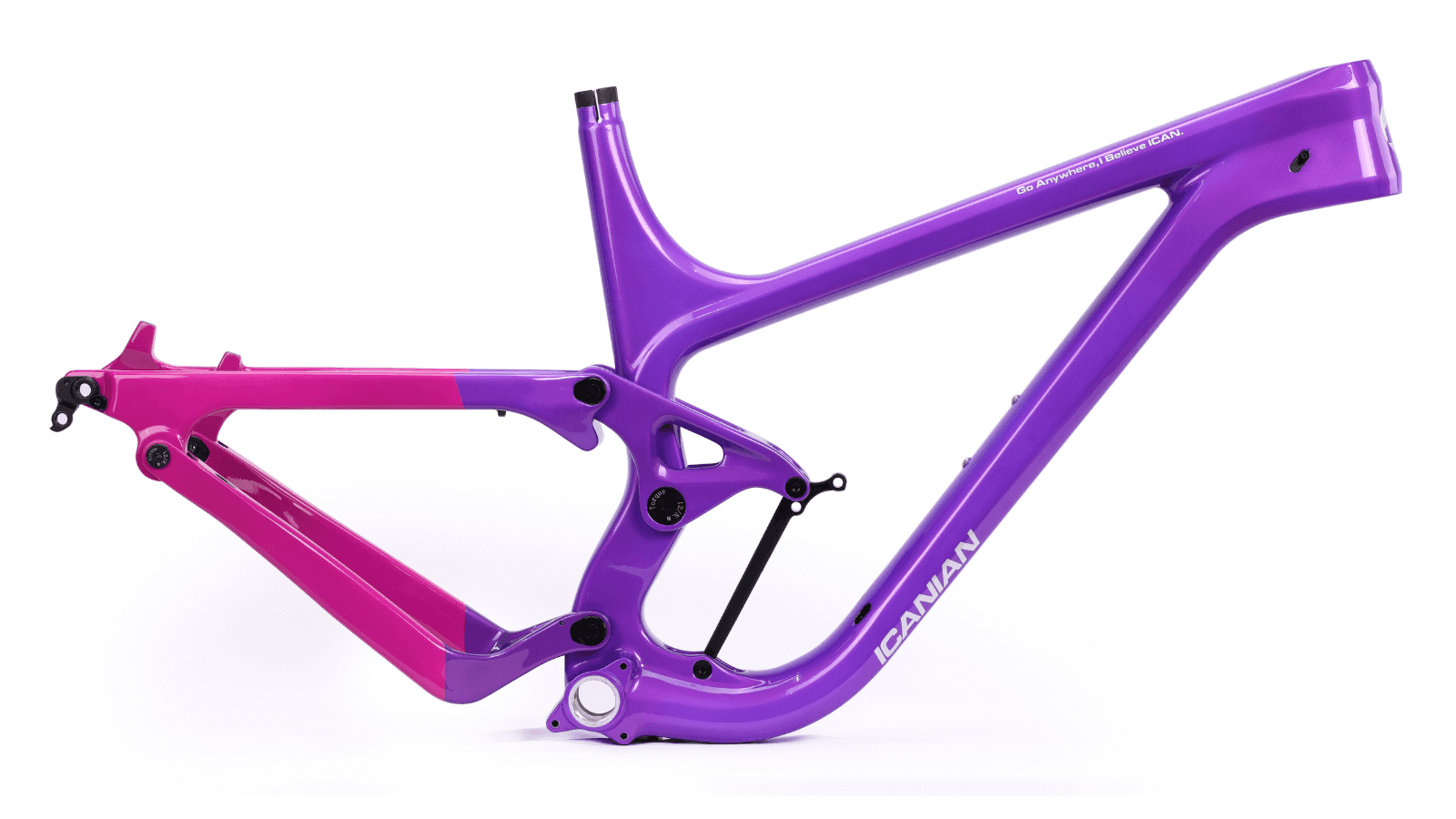

Carbon Enduro Frame Carbon MTB Bike Frame ICANIAN – P9
ICANIAN P9 uses a Toray T700/T800 carbon layup for an excellent strength-to-weight balance—stiff in key zones yet compliant on rough terrain. It accepts 27.5 × 3.0″ or 29 × 2.3″ tires to suit different styles from XC to enduro。 With 150 mm rear travel driven by a 210 × 55 mm shock, it delivers confident control, comfort, and composure on choppy trails.
$539.00
Optimized Geometry And Compatibility
P9 features modern enduro geometry; a 12 × 148 mm Boost rear axle; 30.9 mm seatpost and 73 mm BSA threaded bottom bracket; rear brake mount: PM160 direct. It offers 150 mm of rear travel and pairs best with a 160 mm fork. A tapered 1-1/8″–1-1/2″ head tube improves steering stability. Fully internal routing (brake/shift/dropper) with factory-installed guide tubes for easy setup and maintenance.
Painting
- Standard UDM finish; optional custom solid/fade/metallic/candy in matte or gloss.
- Logo schemes: stealth (tone-on-tone) or high-contrast; rider name/number available.
- RAL/Pantone color matching (final color based on physical sample).
Ready to ride, start your mountain adventure!
Optimized Geometry And Compatibility
P9 features modern enduro geometry; a 12 × 148 mm Boost rear axle; 30.9 mm seatpost and 73 mm BSA threaded bottom bracket; rear brake mount: PM160 direct. It offers 150 mm of rear travel and pairs best with a 160 mm fork. A tapered 1-1/8″–1-1/2″ head tube improves steering stability. Fully internal routing (brake/shift/dropper) with factory-installed guide tubes for easy setup and maintenance.
Painting
- Standard UDM finish; optional custom solid/fade/metallic/candy in matte or gloss.
- Logo schemes: stealth (tone-on-tone) or high-contrast; rider name/number available.
- RAL/Pantone color matching (final color based on physical sample).
Ready to ride, start your mountain adventure!
| Brand | ICANIAN |
|---|---|
| Type | 27.5er/29er Full Suspension Mountain Bike Carbon Frame |
| Model | P9 |
| Material | Carbon Fiber Toray T700 & T800 |
| Color | UDM/Customized |
| Hanger | UDH(Universal Derailleur Hanger) |
| Available Size | S/M/L/XL |
| Tire size | 27.5 x 3.0″ or 29 x 2.3″ If XD groupset：27.5*2.5″ or 29*2.3″ |
| Travel | 150mm |
| Rear Rock size | 210 x 55mm |
| Headset-Upper | 1-1/8″ |
| Headset-Lower | 1-1/2″ |
| Seatpost | 30.9mm |
| Bottom Bracket | BSA |
| Rear O.L.D | 148*12mm |
| Disc front and rear | 160mm |
| Weight | XS-2570+/-40g S-2570+/-40g M-2570+/-40g L-2620+/-40g |
Warranty Policy
Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.
Product Group:
Frame and Rim
Applies to all ICANIAN.
Coverage:
2-year warranty from the date of purchase.
Conditions:
- If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICANIAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
- If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
- The Warranty program is not transferable and only applies to the initial purchaser.
This warranty does not cover：
- Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
- Products which have been incorrectly installed and/or adjusted.
- Issues brought about by neglect or poor maintenance.
- Surface finish and cosmetic treatments (anodizing, decals, etc.)
- Crash damage.
- Consequential or incidental damages (where applicable)
- Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
- Counterfeit products
- Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICANIAN or an ICANIAN-authorized servicer, or outside of the recommendations of ICANIAN Customer Service
Tips:Please contact the official support of ICANIAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.
The following will void your warranty
- Misuse (trick riding, etc.)
- Modification of wheels
- Tire pressure exceeding 50psi
- Improper assembly
- Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
- Use of brake pads not designed for carbon wheels
