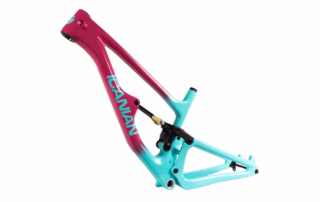

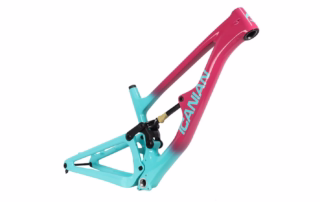

Carbon Enduro Full-Suspension Frame X17 (UDH)
- Crafted from Toray T700 & T800 carbon fibers for a perfect balance of strength and lightness.
- Designed to fit 27.5 x 2.8″ or 29 x 2.5″ tires, accommodating diverse terrain preferences.
- Offers 180mm of suspension travel for a smooth, responsive ride on various trail types.
- Equipped with a 205 x 65mm rear shock, BSA bottom bracket, and 148*12mm rear O.L.D for optimal power transfer and stability.
- Weighs 3300g +/- 40g, with 100% customizable frames tailored to specific needs, backed by independent R&D and competitive pricing.
$796.00
Built with a hybrid layup of Toray T700/T800 carbon, the X17 balances race-level strength with confident, lightweight handling. It supports 27.5 × 2.8″ or 29 × 2.5″ tires and delivers 180 mm of rear travel for smooth, responsive control from bike-park days to big-mountain descents. Spec highlights include a 205 × 65 mm rear shock, BSA threaded bottom bracket, and 148 × 12 mm Boost rear spacing for efficient power transfer and rock-solid stability. Frame weight is 3300 g ± 40 g. We offer 100% customizable frames—layup, fit, and finish—backed by independent R&D and fair, competitive pricing.
| Brand | ICAN |
|---|---|
| Type | 27.5er/29er Full Suspension Mountain Bike Carbon Frame |
| Model | X17 |
| Material | Carbon Fiber Toray T700 & T800 |
| Color | UDM/Customized |
| Hanger | UDH(Universal Derailleur Hanger) |
| Available Size | S/M/L/XL |
| Tire size | 27.5 x 2.8″ or 29 x 2.5″ |
| Travel | 180mm |
| Rear Rock size | 205 x 65mm |
| Headset-Upper | 1-1/8″ |
| Headset-Lower | 1-1/2″ |
| Seatpost | 30.9mm |
| Bottom Bracket | BSA |
| Rear O.L.D | 148*12mm |
| Weight | 3300g+/-40g(M) |
Warranty Policy
Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.
Product Group:
Frame and Rim
Applies to all ICANIAN.
Coverage:
2-year warranty from the date of purchase.
Conditions:
- If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICANIAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
- If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
- The Warranty program is not transferable and only applies to the initial purchaser.
This warranty does not cover：
- Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
- Products which have been incorrectly installed and/or adjusted.
- Issues brought about by neglect or poor maintenance.
- Surface finish and cosmetic treatments (anodizing, decals, etc.)
- Crash damage.
- Consequential or incidental damages (where applicable)
- Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
- Counterfeit products
- Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICANIAN or an ICANIAN-authorized servicer, or outside of the recommendations of ICANIAN Customer Service
Tips:Please contact the official support of ICANIAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.
The following will void your warranty
- Misuse (trick riding, etc.)
- Modification of wheels
- Tire pressure exceeding 50psi
- Improper assembly
- Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
- Use of brake pads not designed for carbon wheels
